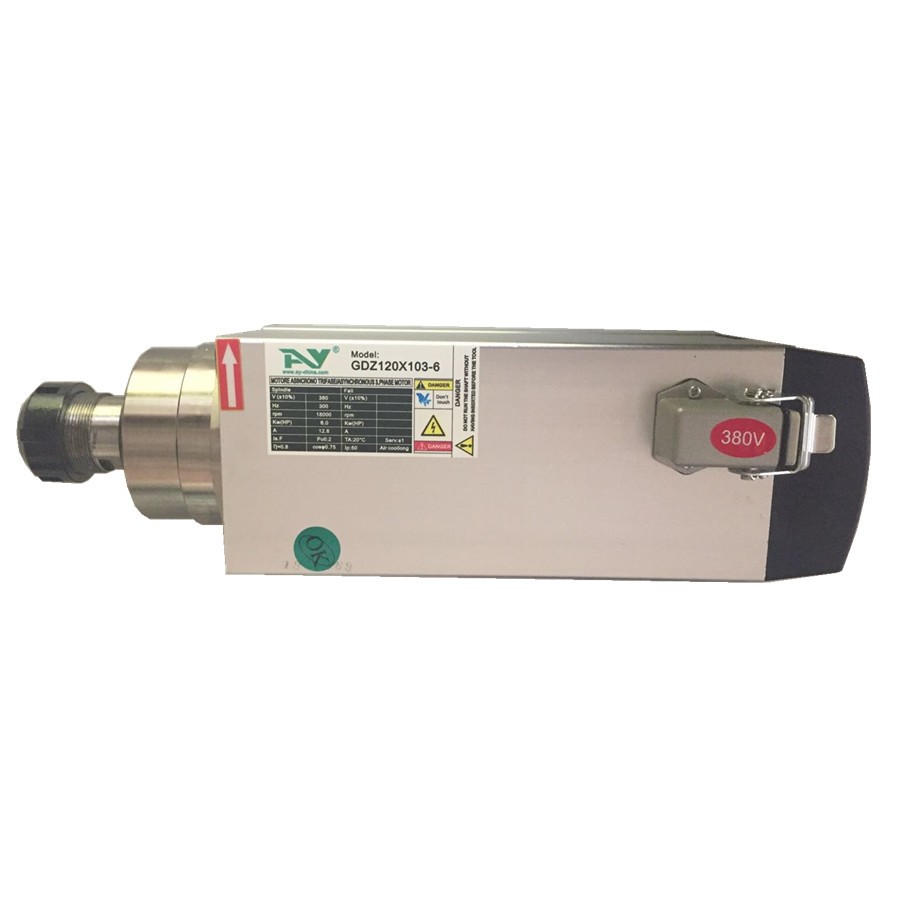

型號(hào)Spindle type: GDZ120X103-6

1.轉(zhuǎn)速Rev(rpm):18000

 2.功率Power(kw):6

 3.電壓Voltage(V):220/380

 4.電流Current(A):22/12.6

 5.頻率Frequency(HZ):300

 6.風(fēng)冷Cooledby air

 7.軸承型號(hào)Bearing type:2×7008C P4

                                              2×7004C P4

 8.油脂潤滑Lubricate：grease

 9.夾帽Collet(mm):ER32

10.保修Repair time:bearing(half year),spindle(one year)

11.長度/寬度/高度Length/width/hight(mm):371/103/120

12.balance test result(ms*s):2.4rpm<5

13.L(mm):371,L1(mm):40,L2(mm):60,L3(mm):60,L4(mm):36,

L5(mm):91,L6(mm):103,H(mm):146, H1(mm):60

14.重量weight（kg）:15KG

15.品牌Brand:韓國AY
