Vibrating conveyors
振動輸送機
The vibrating conveyors, driven by electromagnetic vibrators or synchronously contra-rotating vibratingmotors, provide almost maintenance-free and low-wear operation. Our vibrating conveyors have nowbeen used for horizontal and vertical conveying of countless products under the most varied operating andsite conditions. Vibrating conveyors can be used even under extreme environmental conditions (e.g. han-dling of materials at 9000, at ambient temperatures down to -50C, under exclusion of air or in a vacuum).
由電磁振動器或同步逆向振動電機驅動的振動輸送機.提供了幾乎免維護和低磨損的運行環境。我公司生產的振動輸送機在多變的操作和現場條件下水平和垂直輸送了無數種產品。即使在非常惡劣的環境條件下(例如處理900℃高溫的物料、環境溫度低達零下50'C、在氣密或真空狀態).也可使用振動輸送機。

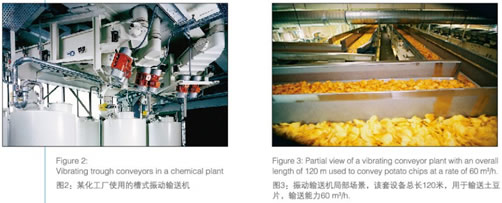

Vibrating trough and tube conveyors
槽式和管式振動輸送機
Open or enclosed troughs and tubes of various types made of standard or stainless steel, or of speciamaterials such as Hastelloy or titanium, are used for materials handling.
我公司生產的振動輸送機型號多樣，有開放式或密閉式，槽式或管式.制作材料有標準鋼或不銹鋼或特殊材料，如哈司特鎳合金或鈦材等。
Highly flexible coil springs or rubber cushion elements provide elastic support or suspension. High de-grees of vibration insulation and smooth operation can be achieved by means of structure-borne noiseelimination.
高彈性的支撐或懸掛裝置采用高度靈活的螺旋彈籠或橡膠墊制作。通過消除結構嗓音措施.從而達到設備振動高度絕緣和平穩運行的效果。
The conveying process itself is based on the vibration of the conveyor deck at a slight angle to the plane of conveyance. The material to be conveyed is moved in microscopic throws, if the vertical acceleration exceeds the acceleration due to gravity.
輸送工藝自身是基于抽送平面和輸送板振動呈輕度角的原理。當垂直加速度大于皿力加速度時.被輸送物料以微拋形式移動。

Although there are numerous investigations into the behaviour of bulk materials in vibrating trough convey-ors and the governing laws, all essential product parameters are rarely known with sufficient accuracy, so that experimental studies are often indispensable despite many years of experience. A broad range of testing equipment is available for this purpose in our premises.
盡管人們對槽式振動輸送機的輸送特性和規律進行了大量的研究工作.但很多關鍵的產品參數還不夠精確.所以雖然我們在該領域積累了多年的經驗.但往往還用要進行試驗來驗證。我們的工廠擁有多種設施齊全的測試設備用于實驗。
Free-swinging vibrating conveyors of simple design are available for conveying distances up to about 7 m.
Distances up to 30 m are covered by our natural frequency conveyors of most modern and extremely silent design
如果輸送距離在不超過7米，可采用設計簡單的自由振動輸送機。我公司生產的共振式輸送機融合了最先進和幾乎靜音的設計，單臺輸送設備距離可達30米。

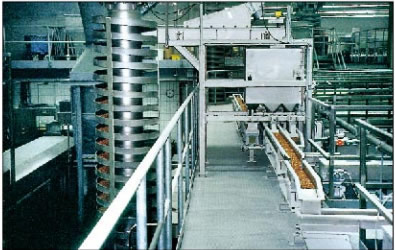

食品加工廠使用的振動螺旋輸送機和槽式輸送機

共振輸送機，寬300毫米，長12米，每小時輸送10號清潔劑

Vibrating spiral conveyors
振動螺旋輸送機
Vibrating spiral conveyors move the products vertically on helical paths up to a height of 7 m.
振動螺旋輸送機通過螺旋路徑垂直拍送產品.有效抽送高度可達7米以上。

Vibratory screening machines
振動篩
The rapid vibrations of the screening deck convey the product across the screen in an efficient throwingmotion providing separation of the bulk material into the desired particle size fractions. The optimum ma-chine index (ration of screen acceleration to acceleration due to gravity) can be adjusted to each particular application by means of the variable out-of-balance force.
篩板的快速振動將物料沿篩板以有效拋擲運動輸送物料.進而將物料篩分成所需的粒度。對于每一個具體的應用案例.可以通過調節偏心力獲得最優的設備運行參數{篩分加速度和重力加速度的比值!
In addition to inclined screening machines we are manufacturing well-proven twin motor driven horizonta screening machines (screening trough conveyors) providing efficient screening at minimum mounting height.
除了篩板有坡度的傾斜篩分機.我們還生產經使用證明性能極佳、雙馬達驅動的水平篩分機(槽式輸送篩分機).只需很低的安裝高度就能獲得高效的篩分效果。
Series G vibratory screening machines for general applications are of enclosed, easy to clean design with 1 to 3 stacked screening decks.
G系列的振動篩為通用型.封閉式，結構易于清潔，上下安裝1-3層篩板。
The screening machines can be equipped with quick-release screen and lid tensioners for use in continu-ously operating production lines to eliminate long production break downs due to screen changing.
在需要持續運行的生產線.為了避免更換篩網造成長時間的停產.篩分機上可配備用于篩網和篩蓋快卸張緊裝置。

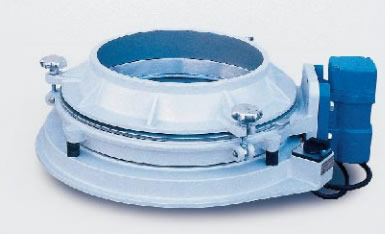

VIBRAPID 圓振動篩

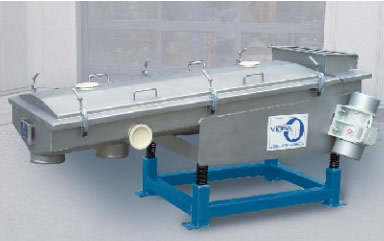

SRK 15/7.5 -I-V振動篩，用于篩分塑料顆粒

The various types designed for general applications are supplemented by special constructions. e.g. de-watering screening machines, circular screening machines or specially developed Series SRK screening machines for plastic granulate featuring an adjustable angle of throw and optimum cleanability
通過一些特殊的制作，通用型篩分機又有了多種不同的型號.如脫水篩分機、圓篩分機或特殊設計的SRK系列篩分機;SRK篩分機用于塑料顆粒的篩分.具有拋料角度可調、便于清潔等優點。
Type MA/DV and SA screening machines complete the series of machinery in the heavy-duty range. Drive system, spring suspension and materials used are basically the same as in vibrating conveyors. The screening surface areas range from
0.16 to 10m2
我們的產品系列還包括MA/DV和SA重型篩分機。所使用的驅動系統、彈簧懸掛和材料等與振動輸送機基本相同。篩分面積從0.16到10平方米。
Pharmaceutical design
醫藥行業機型設計
Machines for use in the pharmaceutical and food industries are built to meet the most stringent hygienic
standards.
應用于醫藥和食品行業的設備制造需要滿足極其嚴格的衛生標準。

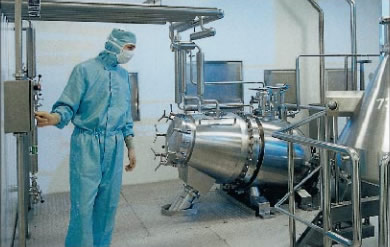

特種篩分機、滿足最高衛生標準要求，可原位清洗和滅菌

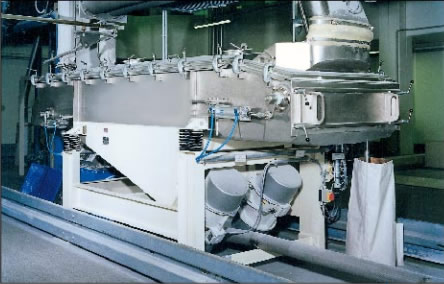

SR36/10振動篩 用于食品加工廠

Type ER batching trough conveyors
ER型定量給料輸送槽
In addition to vibrating conveyors used as batching system we also supply ER batching trough conveyors specially designed for even batching of bulk materials into mixers, grinders, weighers and processing equipment.
除了振動輸送機可以用作定量給料系統以外.我公司專門開發的ER型定量給料輸送槽可以給攪拌機、研磨機、稱量裝置和加工設備等進行均勻定量給料。
The Series ER features a modular design making it possible to combine driving block, trough and feed hopper in different ways.
ER型定量給料輸送槽的優點是采用模塊化設計，驅動模塊、輸送槽和給料料斗等可以按照不同的方式進行組合。

The electromagnetic drive systems and vibrators mainly used in these applications provide almost maintenance-free and low-wear operation. The associated electronic control systems with linearized con-trol characteristics and voltage stabilization can be driven by 4-20 mA or 0-10 V input signals for incorpo-ration into control circuits.
Explosion-proof models are also available.

該型號設備通常配置運行磨損低、幾乎免維護的電磁驅動系統和振動器。配備的電控系統具有線性控制特征和稱壓功能.可用4-20 mA或0_10V的輸入信號接入控制線路來驅動。此外還有防爆型。

Bin discharging trough conveyors
料倉卸料溜槽
Specially designed vibrating trough conveyors with electromagnetic or motor vibrators are available for the controlled discharge of bulk materials from bins and containers.
我公司設計的特殊振動輸送溜槽配備電磁或馬達振動電機.用于控制從料倉或容器中的散料卸料。

Our SX bin dischargers are primarily intended for discharging bulk materials of poor flow characteristics The bulk material column in the bin can be optimally activated by a vibrating motor drive system with infi-nitely variable out-of-balance force. A vibrating outlet funnel considerably increases the fluidity zone within the bin. The large opening normally required for free flowing has been reduced here to a smaller convenient opening.
我公司生產的SX料倉卸料裝里的主要用途是卸載流動性差的物料。料倉里的散料柱可通過無極調節振動馬達驅動系統中的偏心力達到最佳活化效果。振動卸料漏斗在很大程度上增加了料倉內的流動區域。所以.在通常情況下原本需要較大的自由流動出口.現在改用便捷的小出口就行了。
下he flexible suspension of the discharger eliminates transfer of vibration to the bin structure.
卸料裝置的彈性懸掛消除了振動向料倉結構的傳導。
Sprinkling devices
撒料裝置
Vibrating sprinkling plates and troughs are available for sprinkling belt-conveyed products such as roofing felts, bakery goods or confectionery. Based on our wide experience, the requirements of the different properties of the material to be sprinkled can be optimally met.
我公司生產的振動撒料板或撒料槽可以向帶式輸送的產品上撒料.如屋面油氈紙、焙烤食品或糖制食品等。
基于我們豐富的產品處理經驗.針對被撒物料不同特性的具體要求設計最優的解決方案。

Electromagnetic vibrators
電磁振動器
These thyristor controlled vibrators withstand continuous operation and are mainly used as variable drive systems in bin discharging troughs and vibrating tube conveyors.
晶閘管控制的振動器可以持續運行.主要應用于我公司料倉御料溜槽和管式振動輸送機的可變驅動系統中。

Motor vibrators
振動電機
Most of the vibrating conveyors, screening machines, dischargers and other vibrating machinery are excited by our type DV motor vibrators incorporating vibration-proof,impact-resistant pearlitic iron housings and running on largely dimensioned, life-time lubricated roller bearings. The eccentric weights are continuously adjustable.
我公司生產的振動輸送機、振動篩、卸料裝置和其他的振動設備大多都配備我們DV型號的振動電機;該振動電機殼體由抗振抗沖擊的珠光體鑄鐵鑄造，滾動軸承外形偏大且終身潤滑。偏心塊無級可調。
The MEMO disk and the two-point mounting system of the protecting caps are genuine VIBRA design and reflect VIBRA's experience gained over decades. Stan-dard motor vibrators are available with centrifugal forces of more than 130 kN
MEMO指示盤和偏心塊保護罩的2點式固定系統為VIBRA(維博爾)獨創設計.體現了VIBRA(維博爾)在振動領域數十載的豐富經驗。標準振動電機的離心力可高達130kN以上。

Vibrating tables
振動臺
In addition to bin shaking, current applications include shaking and compacting of bulk materials in shipping containers. Precision vibrating tables equipped with elec-tronic control and measuring systems are used for mechanical strength testing of precision mechanical and electronic equipment.
除了對料倉進行振動.現有的振動技術應用還包括對運輸容器中的散料進行振動和填實。
高精度的振動臺配備電子控制和測量裝置.用于測試精密機械和電子設備機械強度。
Small vibrators
小型振動器
Our small vibrators are available for use with small hoppers and units. Small electro-magnetic vibrators, small vibrating motors and compressed air ball vibrators produce up to 20,000 oscillations per minute and centrifugal forces up to 4,5 kN.
我公司生產的小型振動器用來配備小型漏斗和裝置。小型電磁振動器、小型振動電機和壓縮空氣球形振動器可產生每分鐘2萬轉的轉速.離心力可達4.5kN.
Our services cover planning, design and manufacturing of bulk material handling systems including all optional equipment and electrical control systems to suit the customers' requirements.
我公司的服務范圍涵蓋散料處理系統的規劃、設計和生產，包括所有選項設備和電氣控制系統都能滿足客戶的要求。

Drying,cooling,crystallizing 干燥、冷卻、結晶

Vibrating conveyors combined with process engineering techniques form the basis of a sophisticated range of systems used for drying and cooling, crystallizing and calcining, instantizing, agglomerating, tempering and roasting of powdery and granular products.
將振動輸送機和工藝工程技術結合起來.構成一系列復雜的系統.用于粉粒體產品的干燥、冷卻、結晶和焙燒、微粉化、附聚、溫度控制和烘烤等。
Numerous systems have proven successful in the production of foods, instant coffee and tea, pharmaceuticals, detergents, chemicals, building materials etc.
我公司生產的大批系統在食品、速溶咖啡、速溶茶、制藥、洗滌劑、化工建筑材料等行業廣泛使用.并被證明非常成功。
Depending on the type of application involved we offer various designs for direct or Indirect heat exchange.
根據應用類型的不同.我公司提供了直接或間接熱交換的多種設計。
Cooling and drying trough conveyors
冷卻和干燥槽式輸送機
Vibrating trough conveyors and vibrating spiral conveyors with pressure resistant double-walled deck using a special manufacturing technique operate with liquid and gaseous heat transfer media acting as coolers“dryers.
振動槽式輸送機和振動螺旋輸送機.雙層抗壓板，使用特殊的生產技術.以液體和氣體作為干燥機、冷卻機的熱交換介質。

Calcining trough conveyors
焙燒槽式輸送機
Calcining trough conveyors with temperatures of more than 50090 are equipped with electrical tubular heaters of high power density.
焙燒槽式輸送機溫度高達500℃以上.配備高功率密度的管狀加熱器。
Precise monitoring of the individual heating zones by measurement and control sys-tems enables preselected temperature profiles to be accurately maintained.
通過測量和控制系統實現對各個加熱區域的監控，確保溫度保持在預定的范圍。
Fluid bed technology
流化床技術
Optimum heat transfer is achieved in vibrating fluidized beds (vibrating fluid bed dryers/coolers). The drying/cooling medium (gas or air) evenly penetrates the product bed which is being conveyed across the perforated plate. The large contact area in
the fluidized bed provides a rapid heat transfer between solid particles and gas.
振動流化床(振動流化床干操機/冷卻機)可實現最佳的熱傳導效果。干煤/冷卻介質(氣體或空氣)均勻的穿過沖孔板上被輸送的產品層。產品層被流化后固體顆粒和氣體之間的接觸面積大大增加.熱傳導的速度非?？?。
The advantage offered by vibrational excitation of the fluidized bed Is mainly basedon the fact that fluidization of the product bed and the resulting Increased heat trans-far are possible at low air velocity. The even air flow also eliminates the formation of clusters and ensures optimum energy utilization.
流化床振動的優點主要是當產品層被流化后.即使空氣低速流動也能增加熱傳導。均勻的空氣流也能避免產品結塊.提高能量利用效率。

Units with fluid bed areas of more than 7.5m2 are designed as natural frequency dryers/coolers ranging up
to 30m2 per unit. Static fluid bed units are also produced for readily fluidizable products.
當流化床面積大于7.5平方米時，干燥機、冷卻機要設計為共振式，單臺面積可達30平方米。物料流動性好的產品可采用靜態流化床。
Proven hot gas generating, air heating, supply air cleaning and exhaust air dedusting systems are available for gas, air and heat supply. In addition to dryers which meet the most stringent hygienic standards (pharmaceutical design) we also produce fluid bed units with auxiliary equipment e.g. for instantizing of milk powder based products or crystallizing of plastic granulate. Pressure resistant models are available for handling explosive materials.
我公司生產的熱氣發生裝置、空氣加熱裝置、供氣凈化裝置和廢氣除塵系統等均被實踐證明為可靠的供氣、供熱設備。我們除了生產能夠滿足最高衛生標準的(制藥設計標準)干燥機.同時還提供流化床系統的輔助裝置，如以奶粉為基礎的食品微粉化設備或用于塑料顆粒結晶的設備等。我們還有耐壓機型專門處理易爆物料。

Combined units
綜合功能
Units combining two or three functions such as drying, cooling and screening, dewatering and drying have been developed for numerous applications e.g. in the plastic industry and the tobacco and beverages industry.
我公司開發出集諸多功能于一體的綜合系統，如干操、冷卻和篩分集成功能，脫水和干燥集成功能等，應用于眾多的領城，如塑料、煙草和飲料行業等。
The advantages offered, for example, by a combined screening and cooling unit are obvious since both investment and operating costs can be saved. The small space required as compared with separate machines is another benefit.

這些綜合功能的優點是顯而易見的.如將篩分和冷卻功能整合在一起.不僅能節省投資成本，而且還可以降低運行費用。和多臺單套設備相比，集成綜合功能的系統所占空間也大大減少。

Vibrating batch dryers
振動批量處理干燥機

Our vibrating batch dryers of circular design are ideal for long and slightly varying residence times. The material to be dried is conveyed in a circle through the directional vibration of the vibrating motor drive system and is discharged after having reached the desired degree of dryness.
我公司生產的圓形結構振動批量處理干操機，應用于干燥時間長而反應時間變化較小的物料干燥非常理想。
被干燥的物料在干燥機中通過振動馬達驅動系統的定向振動按照圓形軌跡運動.當達到需要的干燥度時.從干燥機中排出。

Test systems
試驗系統
A number of test systems are available for checking the design parameters in our pilot plant or carrying out experiments in our customers' premises to make sure that testing is carried out under operational conditions taking account of all product properties.
為了驗證設計參數，我公司的試驗車間內有大量的試驗設備可供測試檢驗，有時為了考慮產品的所有屬性，確保試驗條件與工廠的運行環境相符。我們也可以將設備運輸?shù)娇蛻艄S進行試驗。
